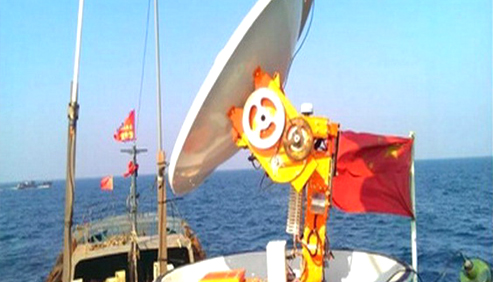

The slipring with the characteristic oflow temperatureandsignal ring is specially customized for the products of theMoving medium products product, which is mainly application inthe emergency communication system. For ensuring the product of Moving medium performance is stable, simple loading, product canbe usedin the car, ship, such as carrier in the high speed movement, has always been the synchronous satellite used by high precision alignment, ensure uninterrupted for satellite communication system.The antenna is used to capture and track the communication satellite through the communication satellite of all Ku band at home and abroad.Sio electronic low temperature signal slip ring has the following.

Slip ring solution

Protection: IP54

Working Humidity: 60%RH

Working speed：0~60rpm

Working Temperature:-45℃~+65℃

Lead Wire Size: three-core shield wire ,four-core shield wire ,five-core shield wire

Rating voltage:380VAC

Dielectric Strength:≥500V@50Hz

Circuit & Current: 3 *5A,9*3A

Insulation Resistance:500MΩ@500VDC

Contact Resistance Fluctuation Value: ≤70mΩ(Base on 50rpm rotating）

Lead Wire Length: Rotating/1500mm,Stator/1500mm

Contact material：Precious metal

Housing Material：Aluminum alloy

Hollow Diameter：Ф80mm
